From Press Releases to Process Flow Diagrams: Deconstructing July 2026 Milestones
The operational announcements of July 2026—most notably India’s deployment of its first Hydrogen-Electric Multiple Unit (HEMU) passenger train in Jind, Haryana, alongside the national rollout of a Green Hydrogen Certification Scheme—signal a fundamental transition for our industry. We are moving away from broad capacity announcements and toward system-level commissioning. Similarly, accelerated capital allocation from institutions like the European Investment Bank for large-scale production facilities demonstrates that commercial financing now hinges on bankable front-end engineering design (FEED).
For engineering practitioners, this operational phase reveals a clear operational truth: success is rarely determined by the headline efficiency of the electrochemical cell alone. Instead, project viability depends on process integration, stack longevity, ambient thermal rejection, and strict purity control across the entire hydrogen generation and dispensing train.
Heavy-Duty Mobility Dynamics: Fuel Cell Hybridization and Refueling Realities
The technical architecture of the newly deployed HEMU rail system highlights the severe physical demands placed on heavy-duty fuel cell powertrains. Rail applications exhibit highly variable duty cycles, characterized by sharp tractive power spikes during acceleration followed by prolonged coasting phases. Direct-coupling a Proton Exchange Membrane Fuel Cell (PEMFC) stack to a dynamic rail load accelerates catalytic degradation due to rapid voltage cycling between low and high current densities.
To optimize stack life, train designs utilize hybrid architectures featuring a PEMFC power block supplemented by a high-rate lithium-ion battery buffer. The fuel cell stack operates within a tight, steady-state efficiency band—typically at current densities between 0.6 A/cm2 and 1.0 A/cm2—while the battery bank absorbs peak load transients and recaptures dynamic braking energy. At this operating point, stack electrical efficiency sits around 52% to 56% (Lower Heating Value), but system net efficiency drops when accounting for parasitic power draws from high-pressure air compressors, coolant pumps, and hydrogen recirculation blowers.
Dispensing and Compression Engineering
Onboard storage for regional passenger rail requires balancing volumetric envelope limitations with gravimetric efficiency. Utilizing 350 bar Type-IV carbon-fiber composite vessels provides a viable compromise, but the refueling infrastructure presents severe thermodynamic challenges:
- Compressing hydrogen gas from electrolyzer discharge pressures (typically 30 bar) up to dispensing pressures (450–500 bar buffer storage) consumes roughly 2.8 to 3.6 kWh/kg H2.
- Fast-filling train tanks introduces significant Joule-Thomson heating. To prevent vessel liner temperature limits from exceeding 85 °C during rapid fills, the dispensing station must incorporate active precooling systems down to -40 °C (T40 rating).
Electrolyzer Scale-up and Water Treatment Precision
As production scales up globally to support both industrial off-takers and mobility hubs, electrolyzer technology choices dictate balance-of-plant (BoP) design. While Proton Exchange Membrane (PEM) and Alkaline (AEL) technologies dominate near-term utility deployments, Anion Exchange Membrane (AEM) systems are attracting significant attention due to their potential to eliminate platinum-group metals (PGMs) while operating at elevated differential pressures.
AEM electrolyzer stacks utilize low-cost transition metal catalysts (such as nickel-iron double hydroxides) and operate with dilute alkaline liquid feeds (typically 0.1 to 1.0 M KOH). They achieve operating current densities of 0.8 to 1.5 A/cm2 at cell voltages under 1.9 V. However, achieving stack stability requires precise temperature management (typically held at 50–60 °C) to prevent thermal degradation of the polymer membrane backbone.
“The long-term viability of green hydrogen facilities hinges not on the headline efficiency of the stack, but on the parasitic power demands of the balance-of-plant and the absolute purity of the water feeding the electrochemical cells.”
The Critical Role of Water Treatment Infrastructure
A frequently underestimated bottleneck in utility-scale electrolyzer plant design is raw water conversion and continuous feed purification. Stoichiometrically, splitting water into hydrogen and oxygen requires exactly 8.94 kg of pure H2O per kilogram of H2 produced. In actual plant operations, system-level water consumption is significantly higher.
To protect electrolyzer membranes and electrode catalyst beds from irreversible contamination, raw intake water must pass through multi-stage industrial water treatment plants. A standard utility-scale water purification train includes:
- Pre-filtration and Ultrafiltration (UF) to remove suspended solids and organics.
- Two-Pass Reverse Osmosis (RO) to reduce total dissolved solids (TDS) by over 99%.
- Continuous Electrodeionization (CEDI) followed by mixed-bed polisher resin units.
The resulting feed water must maintain a electrical conductivity below 0.1 µS/cm (resistivity > 10 MΩ·cm). If trace metallic cations such as Ca2+, Mg2+, or Fe3+ leak into the electrolyzer feed at levels exceeding 5 ppb, they migrate toward the cathode, fouling catalytic sites and causing cell overvoltage increases of 10 to 20 mV per thousand operating hours.
When accounting for RO concentrate reject streams, CEDI flush cycles, and cooling tower evaporation losses required to reject process heat, real-world facilities consume between 18 and 24 kg of raw water for every kilogram of high-purity green hydrogen produced.
Certification, Gas Quality, and System Economics
The implementation of formal certification frameworks, such as India’s Green Hydrogen Certification Scheme, imposes strict legal and technical requirements on gas analytical systems. To qualify for premium green hydrogen pricing or export certification, producers must demonstrate greenhouse gas emissions intensity below defined regulatory thresholds (typically < 2.0 kg CO2eq/kg H2 well-to-gate).
Achieving this level of trace verification requires fully integrated control architectures:
- Gas Quality Monitoring: Fuel cell grade hydrogen (ISO 14687 Grade D / Grade 5.0) mandates maximum moisture limits of ≤ 5 ppm and oxygen levels of ≤ 5 ppm. Meeting these specs requires catalytic de-oxygenation (deoxo) units followed by dual-bed temperature swing adsorption (TSA) dryers operating at dynamic pressure cycles.
- Energy Sourcing Synchronization: Automated programmable logic controllers (PLCs) must continuously cross-reference real-time electrolyzer power draw against time-stamped renewable energy PPA generation meters to maintain continuous compliance logs.
Balance-of-Plant Capex and Opex Breakdown
From a cost-engineering perspective, stack equipment represents only 35% to 45% of total plant CapEx for a fully commissioned 100 MW green hydrogen facility. Balance-of-plant components—including power transformers, rectifiers, demineralized water treatment units, cooling systems, and initial stage compression—account for the remaining 55% to 65%.
With electricity costs governing roughly 70% to 80% of total Levelized Cost of Hydrogen (LCOH), overall plant energy consumption must be tightly managed. While direct current stack consumption ranges between 44 and 48 kWh/kg H2, the total AC-to-hydrogen plant consumption (including transformer/rectifier efficiency losses of ~3%, pump work, cooling fan parasitic loads, and purification) typically sits at 55 to 62 kWh/kg H2 at the battery limit.
Engineering Outlook for Green Hydrogen Projects
The headlines from July 2026 confirm that green hydrogen technology is maturing into an operating industrial asset class. However, closing the gap between demonstration projects and bankable commercial execution requires disciplined plant integration. Engineering teams must prioritize robust water treatment architectures, optimize thermal recovery loops, minimize AC-DC conversion losses, and ensure strict gas cleanup standards. Focusing on these foundational balance-of-plant details is the only way green hydrogen facilities can deliver low-carbon energy predictably and economically over 20-year asset lifetimes.

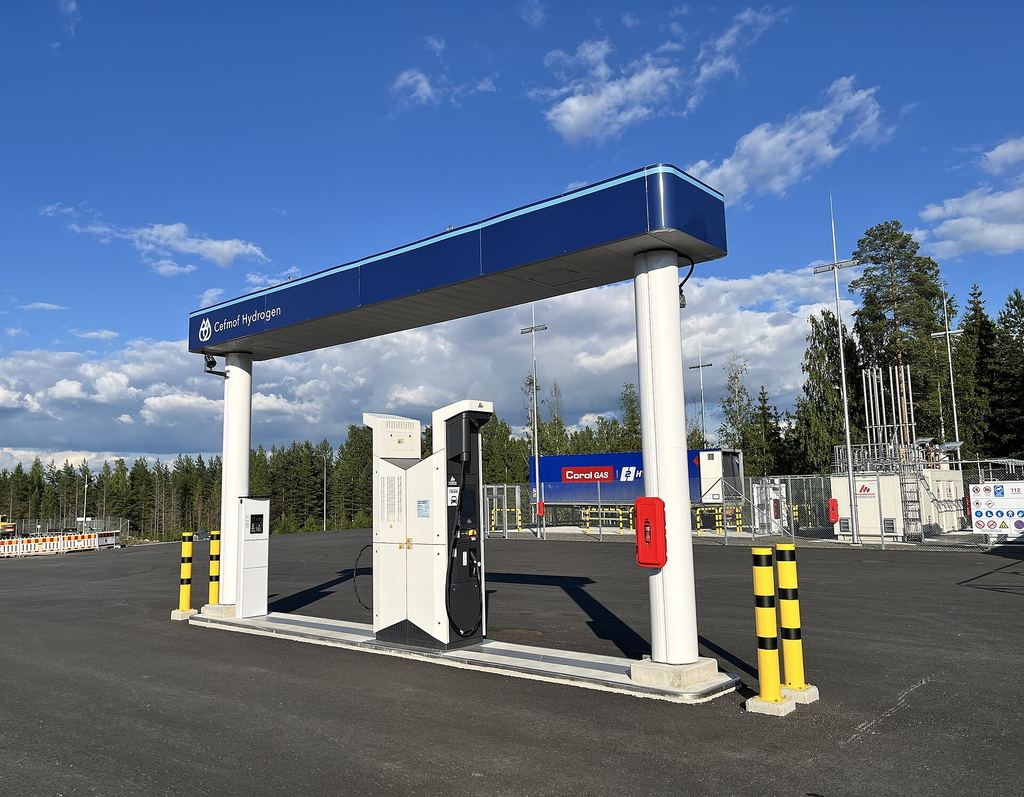

Image: Hydrogen station in Jyväskylä by Tiia Monto, licensed under CC BY 4.0.
