Deconstructing the Hydrail Pilot: System Architecture Beyond the Headlines

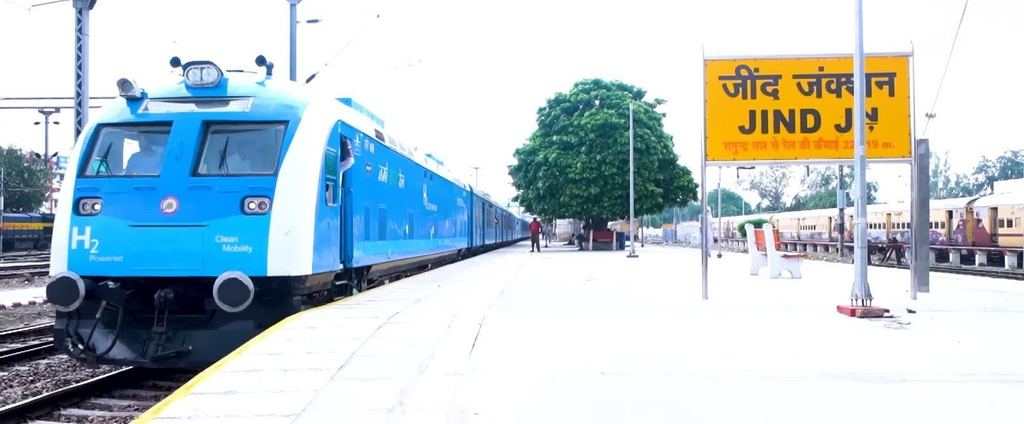

The operationalization of India’s first hydrogen-powered train on the 89-kilometer Jind–Sonipat section of the Northern Railway marks a pivotal shift in alternative traction strategy. Rather than attempting a sweeping replacement of main-line high-density corridors—where traditional 25 kV AC overhead catenary electrification remains thermodynamically and economically superior—this deployment targets non-electrified or low-density feeder routes. For engineering practitioners, evaluating this project requires looking past political ceremony and examining the underlying electrochemical, thermodynamic, and balance-of-plant (BoP) architectures.
The Jind–Sonipat route serves as an ideal testbed. Branch lines often exhibit intermittent traffic patterns where the capital expenditure (CAPEX) of catenary installation—frequently exceeding ₹1.5 to 2 crore per track kilometer—cannot be amortized efficiently. Hydrail technology replaces continuous external electrification with an onboard, decoupled power generation plant. However, replacing a diesel-electric multiple unit (DEMU) with a hydrogen fuel cell system introduces complex trade-offs in power density, thermal management, and fuel logistics.
Powertrain Engineering: PEM Fuel Cells and Hybrid Buffering
At the core of the hydrail rake is a Proton Exchange Membrane Fuel Cell (PEMFC) power module coupled with an auxiliary energy storage system (AESS). PEMFCs are selected for heavy rail applications due to their high power density, low operating temperature range (60°C to 80°C), and fast startup capabilities compared to Solid Oxide (SOFC) or Phosphoric Acid (PAFC) variants.
However, PEMFC stacks suffer from limited dynamic response times and accelerated degradation when subjected to rapid load cycling. Rail traction profiles demand instantaneous peak power during acceleration, followed by prolonged periods of steady cruise and kinetic energy recovery during braking. To protect the fuel cell stack from voltage degradation caused by reactant starvation during sudden load transients, the powertrain employs a hybrid architecture:
- Baseline Power Source: The PEMFC system provides steady-state power matching the average traction load and auxiliary systems.
- Transient Energy Buffer: High-rate Lithium Iron Phosphate (LiFePO4) or Lithium Titanate Oxide (LTO) battery packs deliver peak power during acceleration and absorb dynamic braking energy.
- DC-DC Interfacing: Bidirectional multi-phase DC-DC converters manage power flow between the variable fuel cell output voltage, the battery bus, and the central traction inverter powering the AC induction motors.
Hydrogen Storage and Onboard Thermal Integration
Fuel is stored onboard in roof-mounted Type IV composite cylinders (carbon fiber wrapped around a polymer liner) at a nominal working pressure of 350 bar (35 MPa). While 700 bar systems are standard in light-duty automotive applications to maximize volumetric density, 350 bar remains the optimal standard for rail. Heavy rail vehicles have generous overhead clearance profiles, and 350 bar tanks exhibit lower compression parasitic energy losses, reduced thermal heating during rapid refueling, and superior volumetric cost efficiency.
“Hydrail is not a universal replacement for overhead electrification; it is a targeted engineering solution for non-electrified branch lines where catenary capital expenditure cannot be amortized over low traffic densities.”
Thermal management presents another key constraint. PEMFCs convert roughly 50% to 55% of the lower heating value (LHV) of hydrogen into electricity, with the remaining energy released as low-grade heat. Because the stack operates at a narrow temperature differential above ambient (ΔT ≈ 30°C to 40°C in Indian ambient conditions), the required cooling radiator surface area is substantially larger than that of an equivalent internal combustion engine. Sizing radiator banks to fit within the vehicle loading gauge without introducing excessive aerodynamic drag or auxiliary fan power consumption is a primary design constraint.
Upstream Fuel Supply: Electrolyzer Technologies and Water Treatment Requirements
The green hydrogen supply chain for the Jind hub relies on localized production via water electrolysis. The choice of electrolyzer technology governs both operational flexibility and levelized cost of hydrogen (LCOH):
- Proton Exchange Membrane (PEM) Electrolyzers: Capable of operating at high current densities (>2.0 A/cm2) and rapidly tracking intermittent renewable energy inputs, making them ideal for direct coupling with solar or wind generation.
- Pressurized Alkaline Electrolyzers (AEL): Offer lower capital cost per kilowatt and mature durability, though with slower dynamic response and lower operating current densities (0.2 to 0.6 A/cm2).
Regardless of the electrolysis chemistry, the feed-water treatment system is the critical single point of failure that is most frequently overlooked in project planning. Electrolyzers demand ultrapure water (UPW) adhering to ISO 14687 Grade D standards. Feedstock water must achieve an electrical resistivity of >18.2 MΩ·cm at 25°C (conductivity <0.055 µS/cm), with total organic carbon (TOC) levels below 50 ppb.
Impurities such as sodium, calcium, magnesium, and chloride ions poison the precious metal catalysts (platinum/iridium at the anode/cathode) and foul the ionomer membrane, causing irreversible voltage degradation and premature stack failure. A robust industrial water treatment plant integrated into the refueling depot must utilize multi-stage treatment:
- Pre-treatment: Multi-media filtration and activated carbon beds to remove suspended solids, turbidity, and free chlorine.
- Primary Desalination: Two-pass Reverse Osmosis (RO) systems to remove >99% of dissolved inorganic salts.
- Polishing: Continuous Electrodeionization (CEDI) combined with nuclear-grade mixed-bed ion exchange resins to strip residual trace ions and silica.
Stoichiometrically, producing 1 kg of hydrogen requires 8.92 kg of pure H2O. However, when accounting for RO reject streams, CEDI flush cycles, and cooling tower evaporation, the raw water intake requirement ranges between 18 to 24 kg per kg of green H2 produced. In water-stressed regions, designing high-recovery water treatment systems is vital to maintaining overall project sustainability.
Thermodynamic Efficiency Comparison: Hydrail vs. Catenary
To evaluate hydrail objectively, engineers must analyze well-to-wheel (WTW) efficiency metrics against competing pathways:
| Stage | Direct 25 kV AC Catenary | Hydrogen Fuel Cell (350 bar) |
|---|---|---|
| Transmission / Fuel Prep | 92% – Grid/Transformer loss | 65% – Electrolyzer + Compression (55 kWh/kg) |
| Onboard Conversion | 90% – Traction Transformer/Inverter | 52% – PEMFC Stack LHV Efficiency |
| Mechanical Output | 92% – Motor Efficiency | 88% – Motor + Battery Round-Trip Loss |
| Overall WTW Efficiency | ~76% | ~30% |
The table highlights that hydrogen traction consumes roughly 2.5 times more primary electrical energy per wheel-kilometer than direct electrification. Consequently, hydrail should never compete with catenary electrification on high-traffic lines. Its value lies exclusively in avoiding the CAPEX of overhead infrastructure on rural, topographically difficult, or low-frequency lines.
Engineering Watchlist for Project Execution
For systems engineers and infrastructure planners tracking the Jind–Sonipat pilot and subsequent rollouts under the “Hydrogen for Heritage” initiative, four operational parameters will determine long-term viability:
1. Fuel Cell Stack Degradation Rates: Monitor cell voltage decay under real-world rail dynamic profiles. Target degradation rates must remain under 8 to 10 µV per operating hour to ensure a minimum stack service life of 20,000 to 25,000 operating hours.
2. Fuel Dispensing Thermodynamics: Hydrogen refilling at 350 bar must balance speed with temperature limitations. Without adequate gas precooling (-20°C to -40°C), rapid compression heating can push onboard composite cylinder liner temperatures past the safe 85°C limit defined by SAE J2601 standards.
3. Upstream Water Security: Ensure the local water treatment infrastructure at the depot is designed with sufficient redundancy and low-fouling membranes to handle seasonal variations in raw feed-water quality without shutting down electrolyzer production.
4. Safety Systems Integration: Hydrogen’s low ignition energy (0.017 mJ) and wide flammability range (4% to 75% in air) require SIL-2/SIL-3 rated safety instrumented systems. Roof-mounted storage areas must utilize optical flame detectors, electrochemical H2 sensors, and passive over-roof ventilation to guarantee zero gas accumulation during static dwelling or maintenance garage operations.
