1. Introduction and Fundamentals of Electrolyzer Thermodynamics
As industrial green hydrogen production scales from multi-megawatt (MW) pilot plants to gigawatt (GW) production facilities, thermal management has transitioned from a secondary Balance of Plant (BoP) consideration to a core structural and operational engineering challenge. At Avoltium, our engineering teams continuously optimize primary fluid circuits and heat rejection pathways to maintain high stack energy efficiency while protecting high-value electrochemical components.
To design an effective cooling system, one must first analyze the thermodynamic energy balance within an industrial Electrolyzer stack. The total cell voltage required to drive water electrolysis under continuous load is expressed as:
Vcell = Erev + ηanode + ηcathode + i·Rohmic
Where Erev represents the reversible cell potential (1.23 V at standard temperature and pressure), ηanode and ηcathode are the overpotentials associated with the oxygen evolution reaction (OER) and hydrogen evolution reaction (HER) respectively, i is the operational current density (typically 1.5 to 3.5 A/cm2 for PEM systems), and Rohmic is the total internal resistance of the cell components (membrane, porous transport layers, bipolar plates, and contact interfaces).
The total heat generated within the stack (Qthermal) is governed by the difference between the actual operating cell voltage (Vcell) and the thermoneutral voltage (Vtn ≈ 1.48 V at 25 °C and 1 bar):
Qthermal = I · Ncells · (Vcell – Vtn)
When Vcell equals Vtn, the enthalpy change of the reaction (ΔH) equals the electrical energy input, resulting in net isothermal operation. However, to achieve commercial volumetric hydrogen production rates, industrial electrolyzers operate at Vcell values between 1.7 V and 2.1 V. Consequently, a 10 MW Proton Exchange Membrane (PEM) or Alkaline Electrolyzer (AEL) stack operating at an average Vcell of 1.85 V generates approximately 2.0 to 2.5 MW of continuous thermal energy that must be continuously extracted to prevent catastrophic thermal runaways, phase transformation of polymeric membranes, or rapid electrolyte boiling.
2. Thermal Architectures by Electrolyzer Technology
Thermal management strategies differ substantially across commercial technologies due to variations in operating temperature windows, material compatibility, and chemical environments.
Proton Exchange Membrane (PEM) Electrolyzers
PEM stacks typically operate between 50 °C and 80 °C. The ultra-thin perfluorosulfonic acid (PFSA) membranes (such as Nafion™) exhibit high proton conductivity that is strongly temperature-dependent. However, operating above 80 °C accelerates mechanical degradation, membrane thinning, and pinhole formation via radical attack, while operating below 55 °C introduces severe ohmic resistance penalties.
In PEM systems, high-purity ultra-pure water (UPW) serves a dual purpose: it acts as both the chemical reactant and the primary convective coolant. The primary cooling loop circulates deionized water directly through flow fields engraved into titanium bipolar plates. Because the coolant is in direct electrical contact with high-voltage stack headers, the circulating water’s electrical conductivity must be strictly maintained below 0.1 μS/cm using dedicated continuous ion-exchange resin beds (polishing loops). Failure to maintain this threshold leads to severe parasitic shunt currents, accelerated localized corrosion of titanium porous transport layers (PTLs), and elevated electrical safety risks.
“Controlling thermal gradients across large-area active cell plates is not merely an efficiency problem—it is a structural integrity requirement. A temperature variation exceeding 5 °C across a single membrane electrode assembly can induce severe localized mechanical stresses and accelerated pinhole degradation.”
Alkaline Electrolysis (AEL) Systems
Alkaline stacks operate between 65 °C and 90 °C using a liquid electrolyte—typically 25 to 30 wt% Potassium Hydroxide (KOH) aqueous solution. Unlike PEM architectures, where water flows through precise micro-channels, AEL systems circulate large volumetric flows of caustic lye through both the anolyte and catholyte compartments to carry away generated heat.
The main thermal engineering challenge in AEL systems stems from the aggressive corrosive nature of highly concentrated KOH at elevated temperatures. Heat exchangers, pumps, valves, and piping in the primary loop must utilize nickel-plated steel, 316L stainless steel, or high-nickel alloys. Thermal design must account for the higher density and viscosity of the KOH solution compared to water, requiring higher pump power and specialized hydraulic channel geometries to maintain turbulent flow regimes (Reynolds number Re > 4,000) for effective convective heat transfer coefficients (h > 3,500 W/m2·K).
High-Temperature Solid Oxide Electrolyzers (SOEC)
SOEC systems operate in the thermo-chemical regime of 650 °C to 850 °C using solid ceramic electrolytes (e.g., Yttria-Stabilized Zirconia, YSZ). Thermal management here shifts from heat rejection to thermal balance and high-grade heat integration. Because SOEC operates endothermically near Vtn, external high-temperature steam must be continuously supplied. Cooling loops are replaced by complex heat-recovery recuperators that extract enthalpy from hot outlet streams (H2/H2O and O2/sweep air) to preheat incoming steam feed lines, demanding high-temperature nickel-base superalloys (such as Inconel 600/625) and ceramic insulation matrices.
3. Fluid Dynamics, Plate Heat Exchangers, and Hydraulic Manifolding
Achieving spatial thermal uniformity across large active area stacks (up to 1.5 m2 per cell plate) demands rigorous fluid dynamic design. Modern industrial Electrolyzer stacks utilize parallel header manifolding to deliver uniform coolant flow rates to each individual cell chamber.
Coolant Flow Distribution Equations & Constraints
To guarantee that the temperature differential across a stack (ΔTstack = Tout – Tin) remains within safe operating bounds (typically ΔT ≤ 5 °C), the total volumetric flow rate (Qv) of the coolant is calculated via:
Qv = Qthermal / (ρ · cp · ΔTstack)
Where ρ is the fluid density (kg/m3) and cp is the specific heat capacity (J/kg·K). For a 20 MW PEM stack rejecting 5 MW of continuous thermal energy at a controlled ΔT of 5 °C, the primary DI-water loop must maintain a circulation rate of approximately 860 m3/h.
Plate Heat Exchangers (PHEs) serve as the vital thermal bridge between the primary closed-loop stack coolant and the secondary utility cooling circuits. In PEM and AEL plants, gasketed or welded PHEs are selected based on strict material compatibility:
- PEM Primary Loops: Requires pure Titanium (Grades 1 or 2) plates to prevent metal ion leaching (e.g., Fe3+, Cu2+, Cr3+), which poisons the PFSA membrane exchange sites. Gaskets are manufactured from high-purity EPDM or fluoroelastomers (FKM).
- AEL Primary Loops: Utilizes 316L stainless steel or nickel-alloy plates with EPDM gaskets engineered for high-pH caustic exposure at elevated pressures (up to 30 bar).
4. Balance of Plant (BoP) System Integration and Water Treatment Symbiosis
Industrial thermal management extends beyond the immediate stack cooling loops to encompass the entire facility infrastructure. Strategic integration between the primary cooling circuit, heat rejection units, and the baseline Water Treatment facility enhances overall plant thermodynamic efficiency.
“Integrating predictive feed-forward thermal loops into the balance-of-plant automation allows the electrolyzer system to preemptively adjust flow velocity during high-frequency renewable transients, mitigating thermal shocks that shorten stack life.”
High-capacity raw water treatment systems—combining Ultrafiltration (UF), Two-Pass Reverse Osmosis (RO), and Continuous Electro-Deionization (CEDI)—require feed water at stable temperatures to optimize membrane flux and electrical power consumption. By incorporating a heat recovery heat exchanger between the stack primary waste heat output stream (55 °C–70 °C) and the incoming raw water stream entering the Water Treatment unit, engineers can optimize reverse osmosis efficiency:
- RO membrane permeate flux increases by approximately 2% to 3% for every 1 °C increase in feedwater temperature, significantly reducing high-pressure feed pump energy requirements.
- Preheating raw water reduces the viscosity of the water, optimizing the total hydraulic efficiency of the purification stage before water enters the DI polishing loop of the Electrolyzer.
- High-temperature waste heat can be diverted to low-temperature industrial district heating networks or thermal desalination systems, raising total plant combined energy utilization efficiency from ~65% to above 85%.
5. Transient Thermal Control Strategies under Variable Renewable Load
One of the most complex control challenges in modern green hydrogen production is managing dynamic thermal responses when electrolyzer units are coupled directly to intermittent renewable power sources (e.g., wind farms or solar photovoltaic arrays). Fast power ramps (up to 10% to 20% of rated capacity per second) cause rapid fluctuations in internal heat generation.
Conventional feedback control loops (such as standard PID loops regulating variable-frequency pump drives based on stack outlet temperature) exhibit continuous thermal lag. Under sudden solar dropouts or wind gust ramps, stack internal temperatures can swing beyond acceptable operating limits before pump speeds can adjust. At Avoltium, we implement advanced Model Predictive Control (MPC) with feed-forward power signaling:
- Feed-Forward Power Sensing: Instantaneous acquisition of incoming DC current signals preemptively calculates target heat generation rate (Qthermal).
- Dynamic Flow Adjustment: Coolant circulation pumps ramp up or down *prior* to physical fluid temperature rises, maintaining constant internal fluid ΔT.
- Three-Way Mixing Valve Modulation: Proportional three-way bypass valves continuously adjust the ratio of coolant passing through secondary heat exchangers versus stack bypass lines, holding stack inlet temperature (Tin) stable to within ± 0.5 °C.
6. Conclusion
Robust thermal management in modern industrial electrolyzers is fundamentally tied to system efficiency, operational safety, and overall stack longevity. Engineering high-performance cooling architectures requires a multidisciplinary approach combining electrochemical thermodynamics, non-corrosive fluid dynamics, rigorous water treatment quality maintenance, and dynamic feed-forward automation. By continually advancing stack flow distribution design and secondary thermal integration, Avoltium is driving down the levelized cost of hydrogen (LCOH) while accelerating the deployment of reliable, gigawatt-scale zero-emission hydrogen infrastructure.

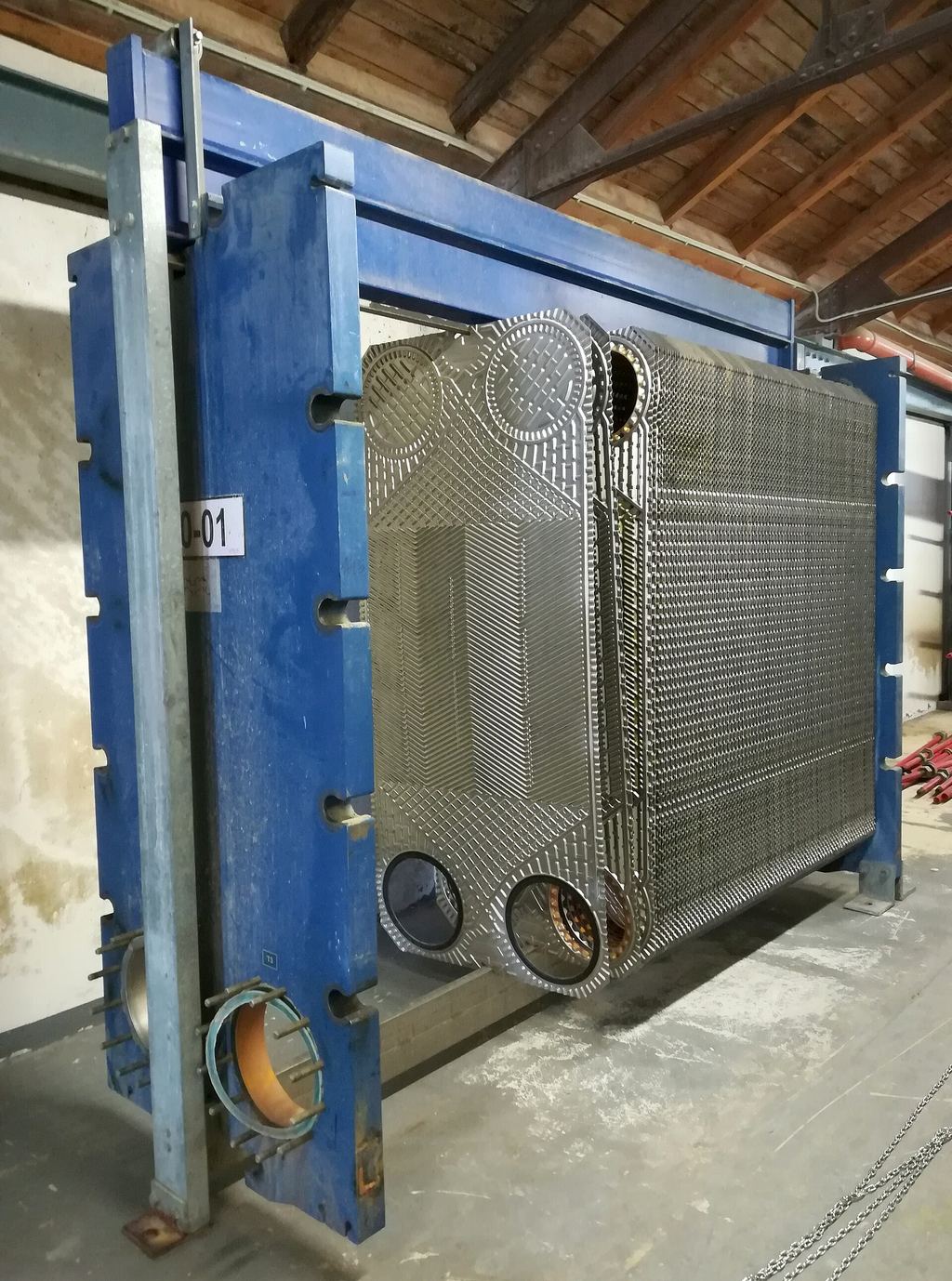

Image: Plate heat exchanger – dismantled pic01 by RomanM82, licensed under CC BY-SA 4.0.
